JWT Auth

Authenticate API requests using JWT Bearer tokens issued by your identity provider (Entra ID, Okta, etc.) for system-to-system integrations.

Overview

JWT Token authentication lets you call the Corgea API using Bearer tokens issued directly by your identity provider (IdP) — such as Microsoft Entra ID or Okta — instead of a user-specific Corgea API token.

This is the recommended approach for system-to-system integrations (CI/CD pipelines, automated scanners, internal tooling) where you want:

• Tokens tied to a service principal or app registration rather than a specific user account
• Token lifetime and scope controlled by your IdP
• Centralized revocation through your IdP without touching Corgea

A Corgea API token is always tied to an individual user. If that user leaves or their account is deactivated, any automation using their token breaks. JWT Auth decouples authentication from user accounts entirely.

How It Works

1. Your system requests an access token from your IdP using client credentials (client ID + secret).
2. The IdP returns a signed JWT containing claims such as iss (issuer) and aud (audience).
3. Your system passes the token as a Bearer token in the Authorization header when calling the Corgea API.
4. Corgea validates the token signature against the IdP’s public keys and checks that the iss, aud, and appid/cid claims match your registered configuration.

Setting Up JWT Auth in Corgea

Navigate to Settings → Integrations and click + Add in the JWT Auth section.

Fill in the following fields:

Field	Description
Name	A descriptive label for this configuration (e.g., Entra CICD Pipeline).
Issuer	The token issuer URL — must match the iss claim in the access token.
Audience	Must match the aud claim in the access token.
Allowed Application IDs	One client ID per line — the application that is allowed to use this configuration.

Use jwt.io to decode an access token from your IdP and verify the exact values of iss, aud, and appid/cid before filling in this form.

Provider-specific values:

• Entra ID issuer: https://sts.windows.net/{your-tenant-id}/
• Entra ID audience: your app’s Application ID URI (e.g., api://{client_id}) — set via Expose an API in Entra
• Okta issuer: https://{domain}.okta.com/oauth2/default
• Okta audience: api://default (or the custom authorization server audience)

Microsoft Entra ID Setup

1. Register an application in Entra

   In the Azure portal, go to Microsoft Entra ID → App registrations → New registration. Give the app a descriptive name (e.g., corgea-cicd) and register it.

2. Expose an API and set the Application ID URI

   Go to Expose an API in your app registration. Set or confirm the Application ID URI — this becomes the aud claim in tokens issued for this app.



   Copy the Application ID URI (e.g., api://5d63c8f0-c9a8-4195-90ee-a9e27e4510b8) — you will enter this as the Audience in Corgea.

3. Create a client secret

   Go to Certificates & secrets → New client secret. Add a description and set an expiry, then click Add.



   Copy the secret Value immediately — it is only shown once. Store it securely (e.g., in your CI/CD secrets store).

4. Request an access token

   Your system requests a token from Entra using the client credentials flow:

   macOS / Linux

   curl -X POST \
     https://login.microsoftonline.com/{tenant-id}/oauth2/v2.0/token \
     -d "grant_type=client_credentials" \
     -d "client_id={client-id}" \
     -d "client_secret={client-secret}" \
     -d "scope=api://{client-id}/.default"


   The response contains an access_token. Pass this as a Bearer token when calling Corgea:

   macOS / Linux

   curl -H "Authorization: Bearer {access_token}" https://www.corgea.app/api/...


   Replace https://www.corgea.app with https://your_instance.corgea.app if you are on a private deployment.

5. Register the configuration in Corgea

   In Corgea’s Add JWT Auth Configuration form, enter:

   • Issuer: https://sts.windows.net/{your-tenant-id}/
   • Audience: the Application ID URI from Step 2 (e.g., api://5d63c8f0-...)
   • Allowed Application IDs: the Application (client) ID from your app registration

   Click Add to save.

Testing with Postman

If you prefer a GUI over curl, you can test the token request and API call directly in Postman.

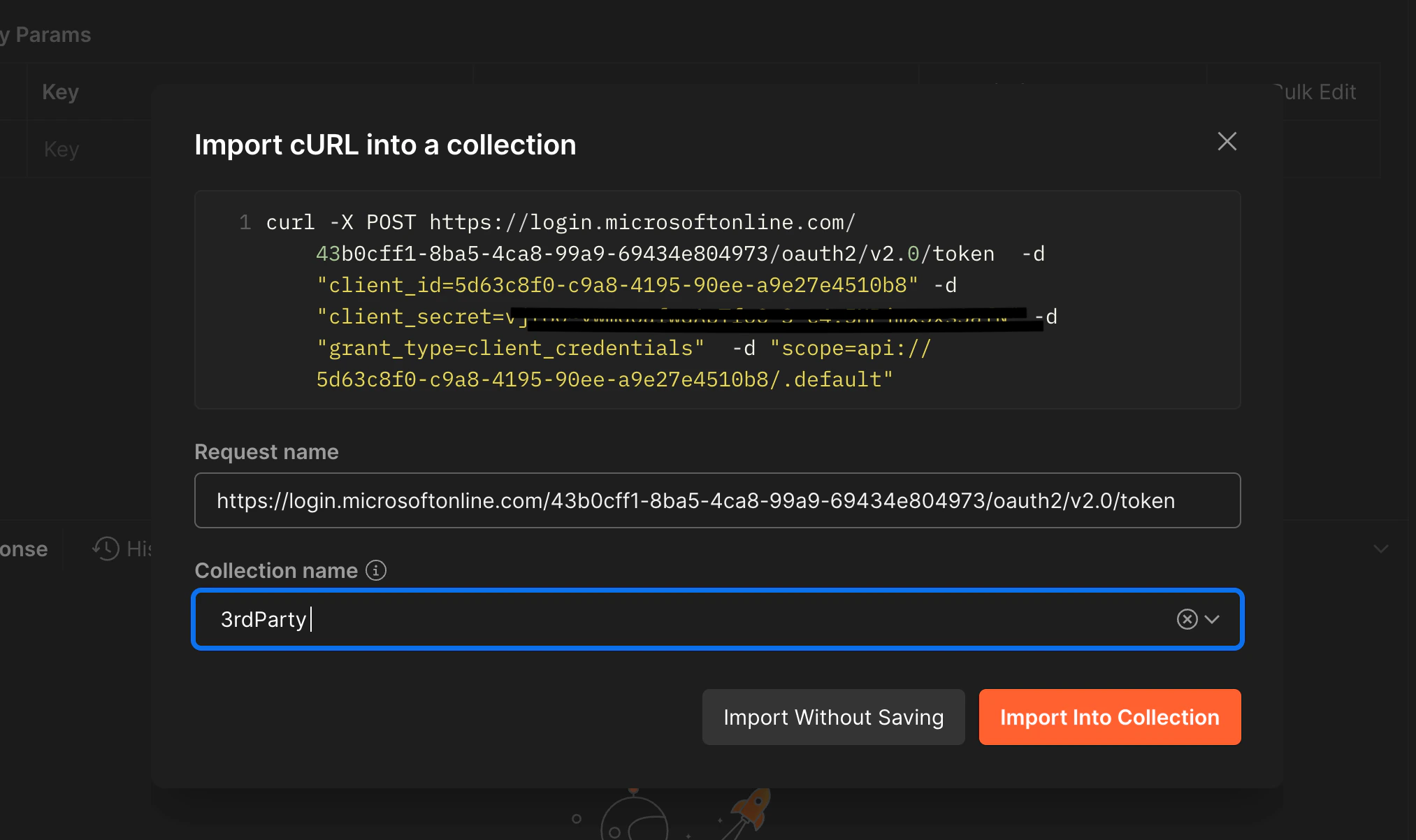

Import a curl command

Postman can convert any of the curl commands above into a request. Click Import in the top-left, paste the curl command, and Postman will populate the method, URL, headers, and body automatically.

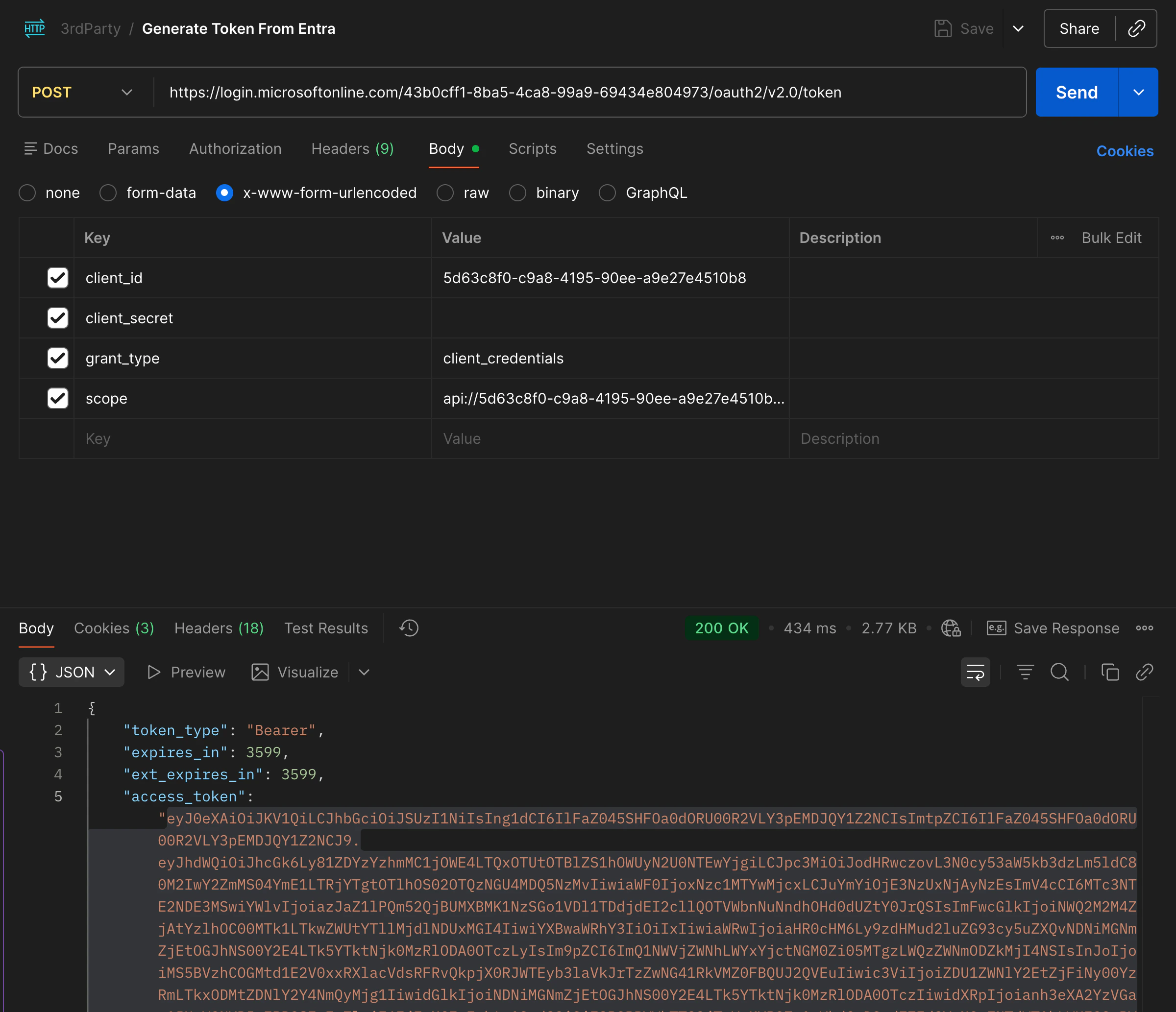

Request an access token

Fill in your tenant-id, client_id, client_secret, and scope in the body fields, then send the request. Copy the access_token value from the response.

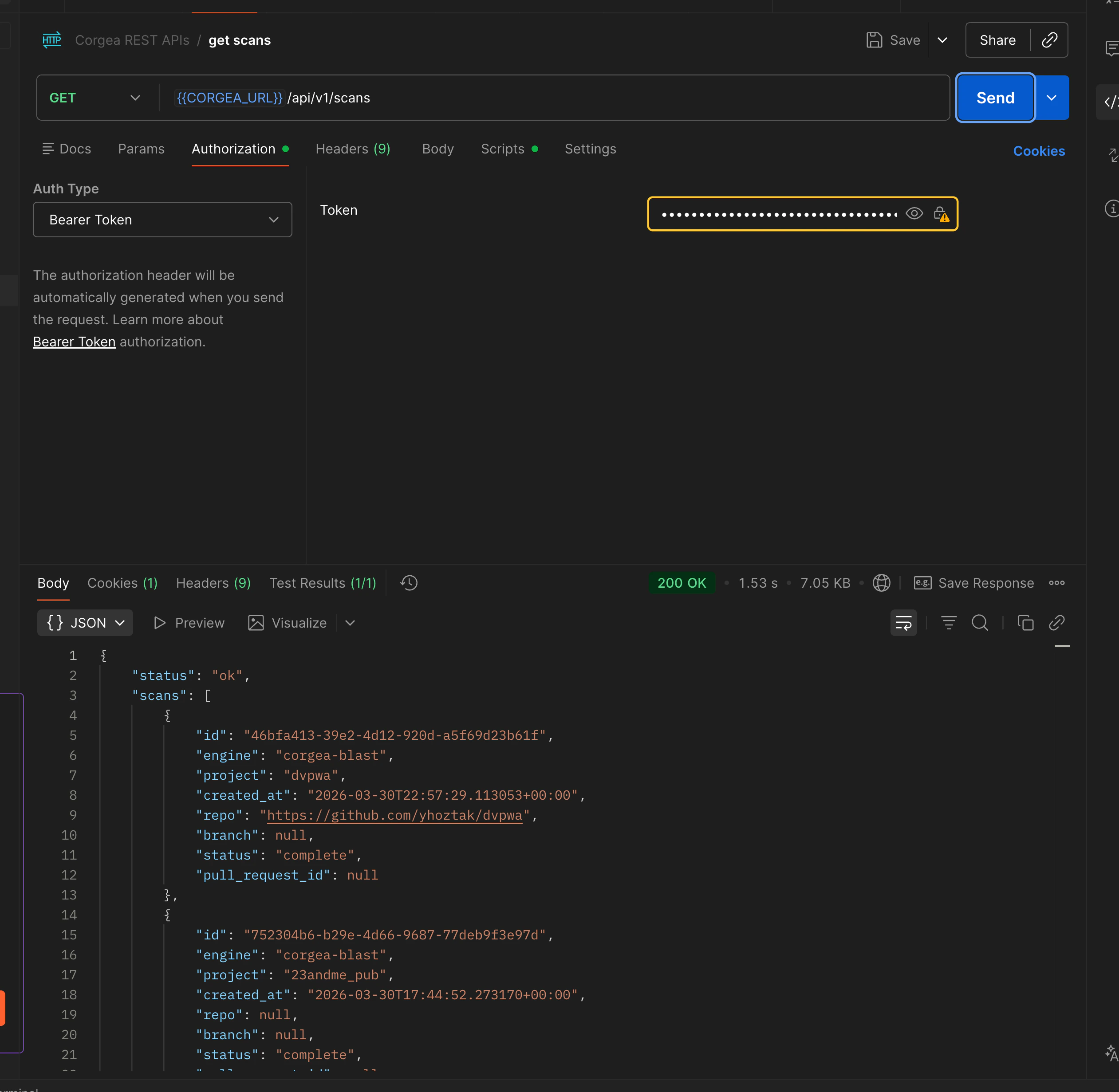

Call the Corgea API with the token

Create a new request to the Corgea endpoint. Under the Authorization tab, set the type to Bearer Token and paste the access_token.

If your company restricts outbound network access, you may need to configure a proxy. In Postman, go to Settings → Proxy and add your corporate proxy. For curl, set the HTTPS_PROXY environment variable or pass --proxy https://your-proxy:port.

Verifying Your Token

Use jwt.io to decode an access token before configuring Corgea. Paste your token in the debugger and inspect the Decoded Payload to confirm the iss, aud, and appid values.

The highlighted aud and iss fields are exactly what Corgea checks when validating incoming requests.

Troubleshooting

• 401 Unauthorized: Decode your token at jwt.io and confirm iss, aud, and appid exactly match the values in your Corgea JWT Auth configuration.
• Token rejected after rotation: If you rotated your client secret, ensure the new secret is updated in your CI/CD environment. The Corgea configuration itself does not need to change since it validates token claims, not the secret.
• Multiple environments: Create a separate JWT Auth configuration in Corgea for each application or environment (e.g., staging vs. production) using distinct app registrations with different client IDs.

Network connectivity issues

If the token request or API call fails with a connection error, use these commands to investigate whether a firewall or proxy is blocking the traffic.

macOS / Linux

# Check DNS resolution
nslookup login.microsoftonline.com
nslookup www.corgea.app

# Check TCP connectivity on port 443
nc -zv login.microsoftonline.com 443
nc -zv www.corgea.app 443

# Trace the network path
traceroute login.microsoftonline.com

# Test with verbose curl output (shows TLS handshake and redirect chain)
curl -v https://login.microsoftonline.com

# Test through a proxy if required
curl -v --proxy https://your-proxy:port https://login.microsoftonline.com

If the TCP connection test fails or traceroute stops at an internal hop, contact your network or security team to allow outbound HTTPS (port 443) to login.microsoftonline.com and www.corgea.app.
